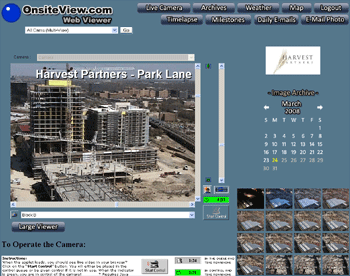

Pan Tilt Zoom Demo
 |
| Image Sensor | 680K pixels (340K effective) |
| Zoom | 26x optical/12x digital/312x combined |
| Minimum Object Illumination | 1 lux (1/30 shutter speed) |
| Pan Angle Range | ±100° (Standard) / ±170° (Reverse) |
| Tilt Angle Range | +90°/-30° (Standard) / +10°/-90° (Reverse) |
| Capture Frame Rate | 30 fps (640 x 480) |
| Video Capture Sizes | 160 x 120, 320 x 240, 640 x 480 |
| Video Compression Method | Motion-JPEG (video), JPEG (still images) |
| Simultaneous Client Access | 50 (max.) |
| Video Transmission Rate | 0.1 to 30 fps (variable) |
| Camera Angle Presets | 20 positions |
| External Device Inpts/Outputs | 2/3 (optional) |
| Operating Environment | 32-104°F (0-40°C) 20-85% RH (non-condensing) |
| Power Supply | AC adapter (included) DC13V (11.5-14V) |
| Power Consumption | 9.7W or less |
| Dimensions (W x D x H) | 5.4" x 5.1" x 4.4" (136 x 130.3 x 110.6mm) (excluding attachments) |
| Weight | 1.54 lbs. (700g) |
 |

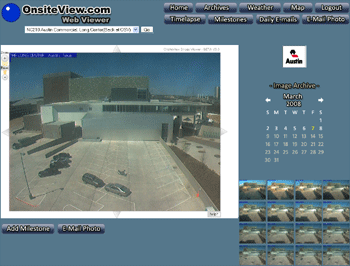

Cellular Static Image Demo
 |
| Image Sensor |
3MP - 2048x1536 Micron 1/2" CMOS
|
| Sensitivity |
.05 ~ 2 LUX (with f1.2 iris) |
| Exposure |
Auto exposure with brightness adjustment and grid exposure selection or
manual exposure (1/50,000 second ~ 1.3 seconds) |
| Imaging Features |
Auto/manual color balance (including skew override), contrast enhancement
(haze subtraction, gamma correction) and sharpening |
| Image Compression |
Industry Standard JPEG and Motion-JPEG (adjustable quality/compression) |
| Frame Rate |
3MP: 11 FPS to 30 FPS*, depending on Resolution
3MP is capable of speeds up to 225 FPS in reduced resolution
|
| Typical File Sizes |
320x240 (8~20KB)
640x480 (25~70KB)
1280x960 (50~120KB)
2048x1536 (100-200KB) |
| Network Connection |
1 x 10/100-baseT Ethernet |
| Serial Connection |
2 x RS-232 Ports, DB9, up to 115.2Kb/sec, X/Y/ZModem Support |
| I/O Connectors |
4 x Digital Alarm Inputs
or
4 x 5V Swing Output Pins
1 x Fully Isolated Relay, 2A@5V or 0.5A@28VDC
Output is 5VDC@50mA |
| Internal Operating System |
uClinux |
| Operating Temperature |
-40°F to +120°F (-40°C to +49°C) |
| Dimensions |
3.25" wide (82.5 mm) x 2.20" high (56 mm) x 6.6" deep (167 mm) |
| Weight |
19.5 ounces (553 grams) |
| EMI Approval |
FCC Class A, CE (EN55024/1998, EN55022/1998) |
| Power Requirements |
8VDC - 15VDC (500mA@12V) |
 |
 |
- * 85-watt+ Solar Module
- * 20 days autonomy without sunlight
- * Activate at dawn; turn off at dusk
- * Aluminum powder coated enclosure
- * Five-year warranty; life expectancy is 30 years.
- * Custom built for each location and installation.
|
|
|
|
|
How will jobsite monitoring benefit me?
If it is true that "A picture is worth 1000
words." Then live video must be worth 10,000!
Advances in technology have not necessarily made our lives
easier. Most of us are busier than ever.
We have all experienced the need to be in two places at
once.
That is where OnsiteView.com can help.
Click here to download our brochure
|
We installed our First Camera in 2001,
before webcams became popular. As travel became
more difficult and companies found themselves with projects
all over the world, a way to monitor activities at multiple
jobsites became important.
Camera technology has changed since 2001 and with internet
access widely available, even at remote locations, obstacles
to providing live images to your desktop have been eliminated.
With both live and archived images you will be able to:
- Reduce jobsite visits
Verify completed work
Spot problems early
Confirm weather conditions
Keep projects on time
- Reduce waste
There are other benefits as well. Need to have
a phone conference regarding a project? Why not have all parties
looking at the same image? Integration of video and archived
images to your company website can also be an effective marketing
tool for your next project.
|
|
|
|
|
|
|
|
|
Live Remote Progress Observation:
Use the static or live images from our webcams for remote monitoring
of your project. OnsiteView hosts the image interface and archiving.
You do not need a computer or software for our packages.
Turnkey Installations:
Give us electricity, internet, and a mount surface. We do the
rest and customize to your specific requirements. Let your staff
focus on their project and let OnsiteView provide the
professional configuration and installation of your camera.
Data Strorage and Site
Documentation: Mirrored hard drives with automated
quadruple backups store your data in an offsite Professional
Data Center. Also, see the current weather conditions, a map
to your site, and all historical archives of your project. -
all on one simple web page. The image interface is also available
on your website if desired.
Time
Lapse Video: At the end of your porject, OnsiteView can
provide an optional video time-lapse of your project. Time Lapse Demo
Consultation: Like
the idea of jobsite observation but still have questions ? Call
us for a free consultation. Draw on our experience and case
studies. Click here for contact information.
Custom Solutions:
Have a unique application or challenging environment? Let our
factory trained technicians have a go at it. These guys love
an opportunity to showcase their ingenuity.

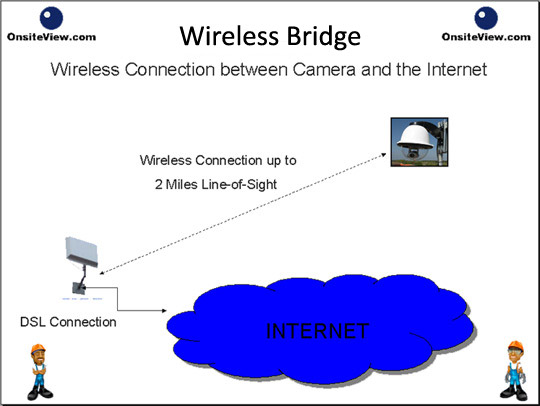

Wireless:
Want to mount a camera high on a crane or across the street
away from your jobsite? No Problem. OnsiteView has a wireless
line-of-site system that transmits images from the camera to
the host at distances of up to two miles.
Site
Surveys: Large josbsite with muliple cameras, or not
sure where the best place to mount? Call for a free site survery.
Solar: Having
problems getting power to the camera mount? We have several
solar power applications that make this a non-issue. |
|
|
|
|
|
